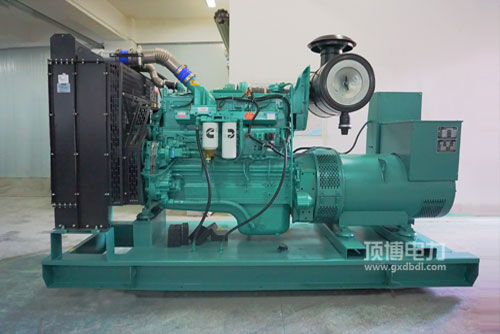

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机燃料经济条件性好: 高级的燃料控住程序，别具一格 的STC、ESTC 分级分类控住程序，特异开发的气缸壳体燃燒物室，超高压输送燃料，足够雾化吸入，燃燒物足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用起驱动力瞬态性优异的: 更好的起驱动力整体风格规划，配合默契康明斯特殊的EFC系统的，控住定位精度大，运行时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用起动因升工作效率高: 大体制定紧凑型.外型搭建合适，加载能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50达到中国人非村道三时段.及亚洲Tier2. Tier 3的排放标准标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必须得要性好， 启心理操作及维护清洗清洗社区便利店，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率区间 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯带发电用打着机的特质：容积小， 挤压比低， 隔栅暖空气受热，不易启动时，活动车载导航电源线的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机规格	惯用输出(kW)Prime Power	应急工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
